Service Pro Series

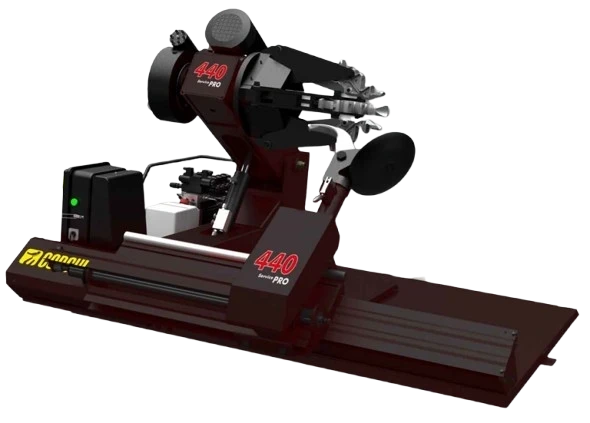

Service Pro 440
Universal fully hydraulic truck tire changer for wheels up to 56"
The Service Pro 440 is a fully hydraulic universal tire changer built for truck, agricultural, and small earth-moving vehicle tires. With a chuck range of 14"-40" (56" with adapter) and a maximum wheel weight of 1,500 kg, this machine handles what most shops can't touch.
Price
$19,400
Call for Freight and Tax
- Fully hydraulic operation — no compressed air required for main functions
- Chuck capacity 14"-40", expandable to 56" with adapter
- Maximum wheel weight 1,500 kg (3,306 lbs)
- Bead breaking force 28,000 N (6,295 lbf)
- Max turntable torque 4,500 Nm (3,319 lbft)
- Tool arm side travel 710 mm (28")
- Handles truck, agricultural, and small earth-moving vehicle tires
Specifications
| Clamping Capacity | 14" - 40" (56" with adapter) |
|---|---|
| Max Tire Width | 1100 mm / 43" |
| Max Wheel Diameter | 2300 mm / 90.5" |
| Max Wheel Weight | 1500 kg / 3306 lbs |
| Electrical Supply | 400V/3ph/50Hz or 230V/3ph/60Hz |
| Net Weight | 980 kg / 2160 lbs |
| Dimensions (H x W x D) | 83" (max 102") x 74.8" x 69" |
| Bead Breaking Force | 28000 N / 6295 lbf |
| Max Torque | 4500 Nm / 3319 lbft |
| Chuck Rotation Speed | 5 - 9 rpm |
| Working Pressure | 150 bar / 2176 psi |
| Motor Power | 1.5 kW (oil) - 2.4-3.2 kW (gearbox) |
Product Literature
