Service Pro Series

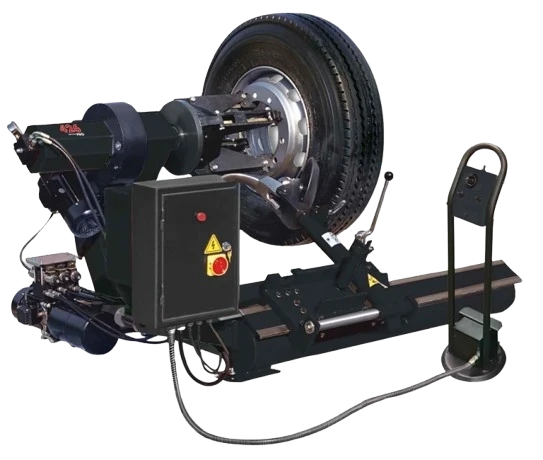

Service Pro 426
Truck and medium-duty tire changer with hydraulic chuck up to 26"
The Service Pro 426 brings hydraulic clamping power and a generous 14"-26" chuck range to shops handling light truck, medium duty, and commercial vehicle wheels. Available in single-phase or three-phase — call for the configuration that fits your shop.
Price
$13,700
Single-phase (230V/1ph/60hz). Call for 3-phase pricing.
Call for Freight and Tax
- Hydraulic chuck clamping — 14" to 26" capacity
- Maximum wheel weight 700 kg (1,543 lbs)
- Bead breaking force 16,000 N (3,597 lbf)
- Max torque delivery 2,600 Nm (1,918 lbf)
- Available in single-phase (230V/1ph) or three-phase (230V/3ph)
- Working pressure 130 bar (1,885 psi)
- Standard equipment includes alloy rim protections, rim pliers, split rim lever, and bead lifting lever
Specifications
| Clamping Capacity | 14" - 26" |
|---|---|
| Max Tire Width | 780 mm / 30.7" |
| Max Wheel Diameter | 1500 mm / 59" |
| Max Wheel Weight | 700 kg / 1543 lbs |
| Net Weight | 498 kg / 1058 lbs |
| Dimensions (H x W x D) | 82" x 71.6" x 48" |
| Bead Breaking Force | 16000 N / 3597 lbf |
| Max Torque | 2600 Nm / 1918 lbf |
| Chuck Rotation Speed | 6 rpm |
| Working Pressure | 130 bar / 1885 psi |
| Motor Power | 1.5 kW / 2 hp (oil) - 1.8 kW / 2.4 hp (gearbox) |
Product Literature
