Service Pro Series

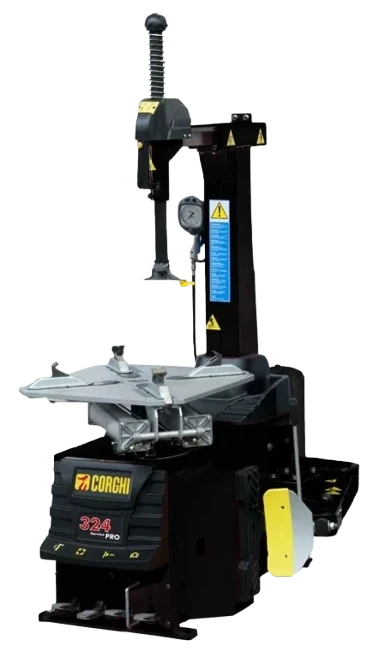

Service PRO 324
Automatic tilt-back tire changer for cars, light transport, and motorcycles
The Service PRO 324 steps up to fully automatic operation with a tilt-back design — ideal for shops handling a mix of passenger cars, light transport vehicles, and motorcycles. More capability than the 124, same proven Service Pro reliability.
Price
$4,580
Call for Freight and Tax
- Fully automatic operation — tilt-back column design for easier tire access
- Handles cars, lightweight transport vehicles, and motorcycles
- Outside clamp 11"-24" / inside clamp 13"-26"
- 2-speed chuck rotation — 7 rpm standard / 6.5-13 rpm variable
- Bead-breaking power of 15,000 N (3,372 lbf)
- Low noise operation — under 70 dB running
- Optional motorcycle adaptor available
Specifications
| Inside Clamping | 13" - 26" |
|---|---|
| Outside Clamping | 11" - 24" |
| Max Tire Width | 3" - 14" |
| Max Wheel Diameter | 1100 mm / 43.3" |
| Net Weight | 255 kg / 562 lbs |
| Dimensions (H x W x D) | 1150 x 920 x 1000 mm / 45" x 36" x 40" |
| Bead Breaking Force | 15000 N / 3372 lbf |
| Chuck Rotation Speed | 7 rpm / 6.5 - 13 rpm (variable) |
| Working Pressure | 8 - 10 bar / 116 - 145 psi |
| Motor Power | 0.85 kW - 1.1 kW / 1.1 - 1.47 hp |
