Rim Clamp Tire Changers
A2024
High performance tilt-back design - faster operation, less repositioning, more tires changed per day.
The A2024 is Corghi high performance tilt-back tire changer. The pneumatic operated tower and head tilts back and locks in place, eliminating the need to readjust tower position between tires. For shops that want a faster workflow without sacrificing reliability, the A2024 is the preferred choice.
- Pneumatic tilt-back tower locks in place - no repositioning between tires
- Faster operation than swing arm designs for high-volume shops
- Handles passenger, light truck, and SUV wheels up to 26 inch inside clamping
- Compatible with optional WL60 wheel lift, BPT, PU1500, and SP2300 accessories
- Preferred choice for reliability and long-lasting performance
Specifications
| Inside Clamping | 13" - 26" |
|---|---|
| Outside Clamping | 10" - 24" |
| Max Tire Diameter | 43" |
| Max Tire Width | 14" |
| Electrical Supply | 115V - 1ph - 60hz |
Available Accessories

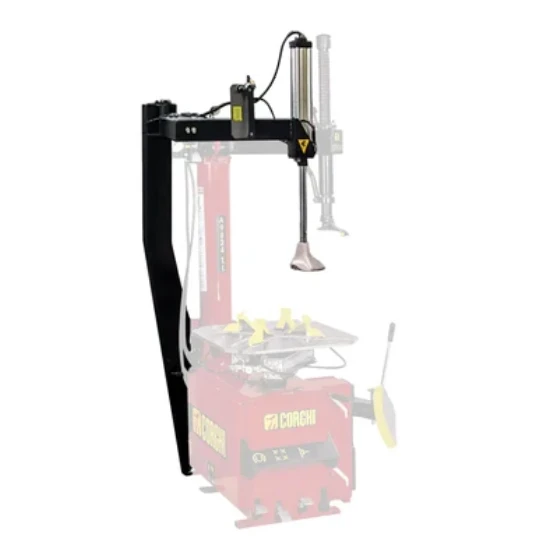

BPT Bead Pressing Tool
Pneumatic tool for easy mounting of low-profile and run-flat tires.

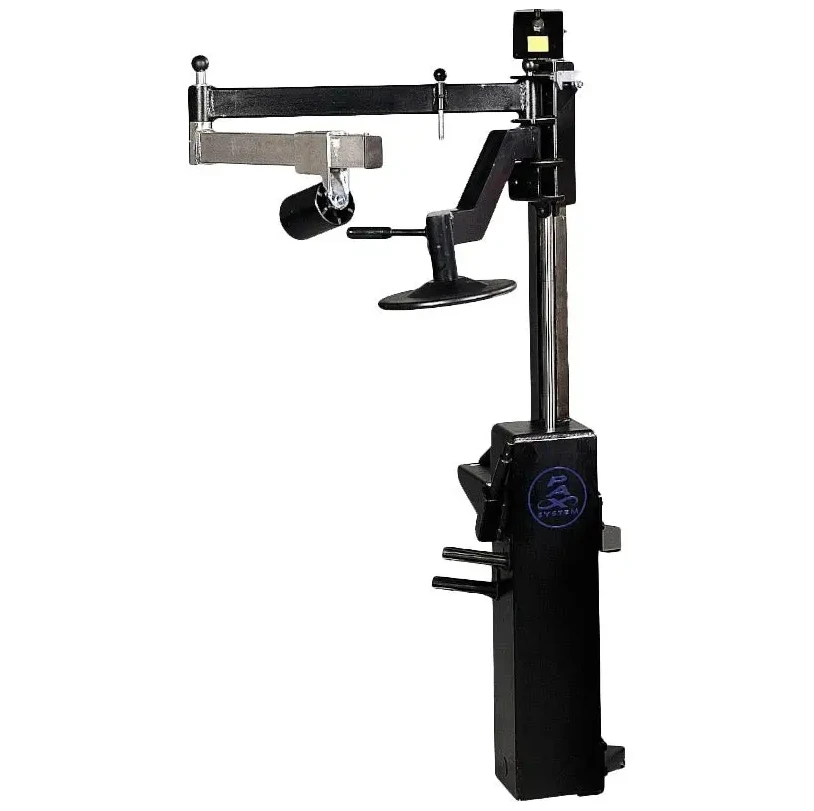

PU1500 Bead Press Arm
Maintains bead in drop center — eliminates bead stress and wheel damage.

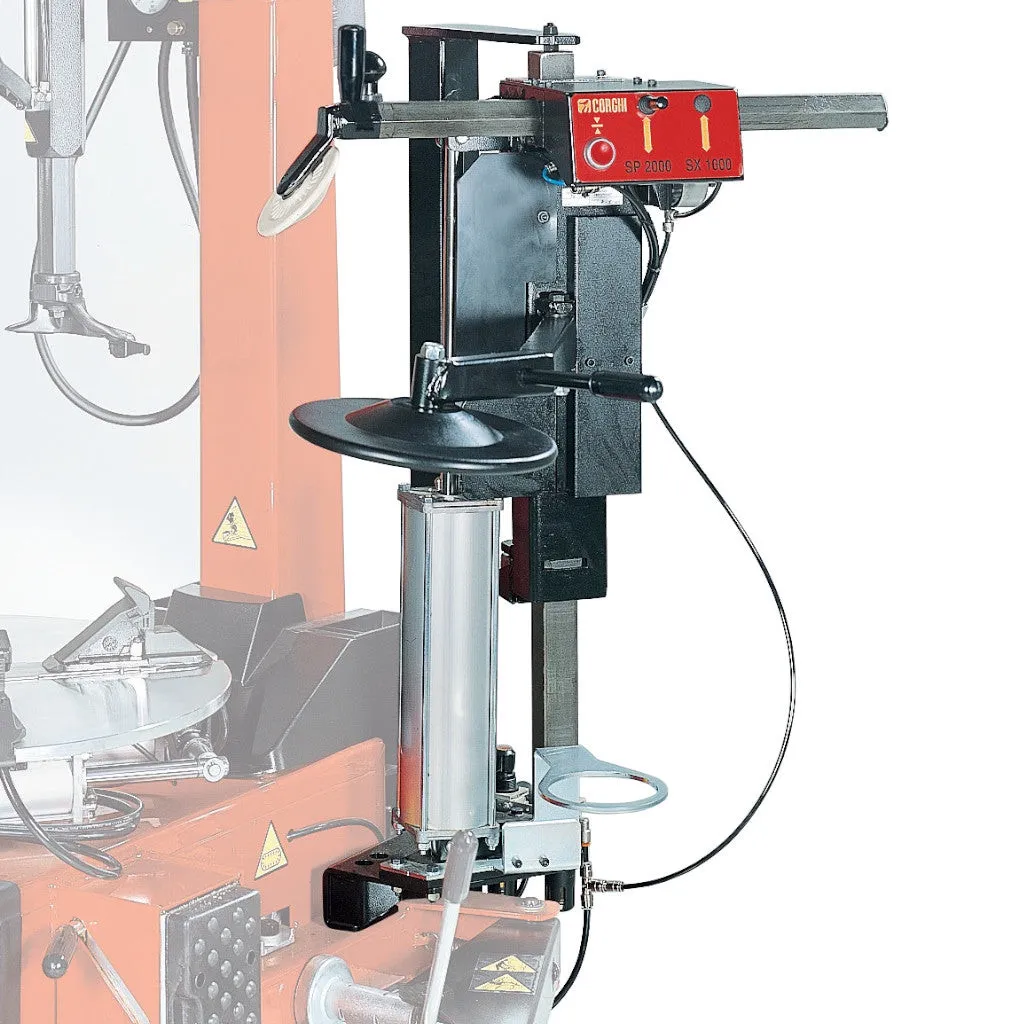

SP2000 Pneumatic Helper Arm
Air-operated bead breaker roller and bead lifter. Keeps the bead in the drop center and helps seat the upper bead during mounting.
SP2300 Helper Arm
Three integrated operating units for all tire types including ultra low profile and run-flat. Choose roller or disc version.
SP2300 Plus Helper Arm
Air-operated bead breaking disc, press foot, and bead lifter. Faster demounting and mounting — handles low profile, run-flat, and alloy wheels.
